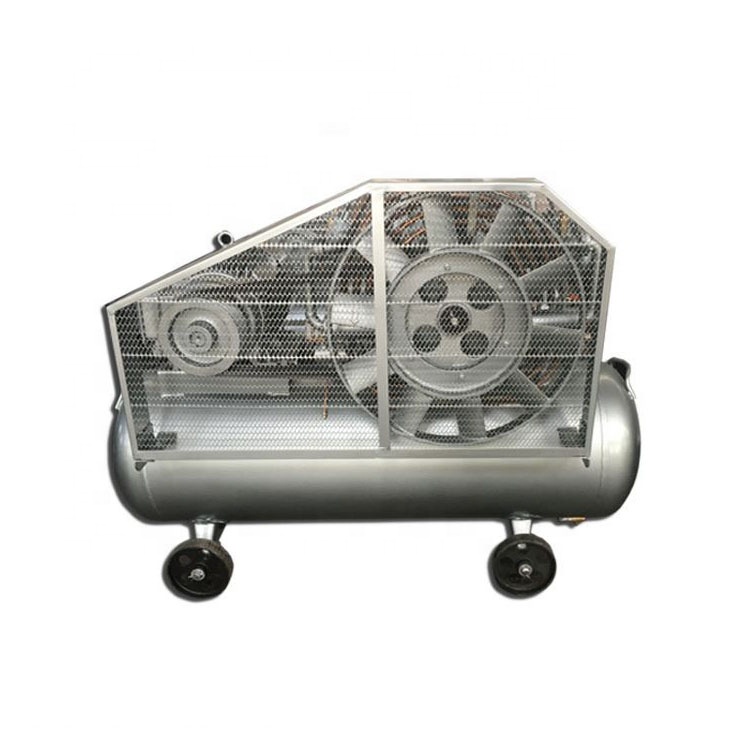

Piston air compressor

KB series industrial high pressure air compressor is used in pneumatic lock pneumatic tool , tire inflation , blowing process, spray paint sand blasting and fluidic element.Powerful type big head design, use good  enough material. Strengthening design for the main components, dimension of the handpiece weight all more than other factories, high safety, and low speed particularly suitable for heavy duty,long time continuous operation particularly high reliability and long service life. Especially air cooling design and air flow design low exhaust temperature.not easy to carbon deposition and high efficiency.
send email to us

Products Details

KB series industrial high pressure air compressor is used in pneumatic lock pneumatic tool , tire inflation , blowing process, spray paint sand blasting and fluidic element.Powerful type big head design, use good  enough material. Strengthening design for the main components, dimension of the handpiece weight all more than other factories, high safety, and low speed particularly suitable for heavy duty,long time continuous operation particularly high reliability and long service life. Especially air cooling design and air flow design low exhaust temperature.not easy to carbon deposition and high efficiency.

Pistonelectric air compressor

Technical parameters of KB series air compressor
Model Working pressure (bar) Capacity (m³/min) Motor power (kw) Dimension (mm) Weight (kg)
l w h
KB-10 30 0.7 11 1690 690 1190 550
KBL-10 25 0.75 11 1690 690 1190 550
KBL-15 25 1.3 15 1800 730 1302 600
KB-15 30 1.2 15 1800 730 1301 605
KBH-15 40 1.2 15 1800 730 1300 680
KB-35 30 1.7 22 1650 1250 1150 800
KBH-35 40 1.6 22 1650 1250 1150 800
KB-45 30 2.2 30 1650 1250 1150 860
KBH-45 40 2 30 1650 1250 1150 860
2*KB-15 30 2.4 15 1616 1030 1452 1000
4*KB-15 30 4.8 15 1870 1770 1487 2100
2*KBH15 40 2.4 15 1620 1100 1452 1200
4*KBH15 40 4.8 15 1890 1840 1487 2400
