Holdwin Surface treatment vibratory finishing machinery tumbler bowl with cover no noise

Vibratory deburring machines and finishing systems produce a cutting action that is very thorough. They remove material from pockets and recesses and inside bores, which cannot be done in a barrel tumbler, so they can be used for very delicate or intricate parts. With high speeds and a short stroke, they can also run large bulky parts without damage. Large wing spans and landing struts are routinely run in these systems. Vibratory finishing systems also lend themselves to be automated easily. They can be fully automated for a flow-through operation or used as a basic batch operation. The action is that of a small orbit at a high speed and thus is very powerful, yet causes little stress on the parts

Products Details

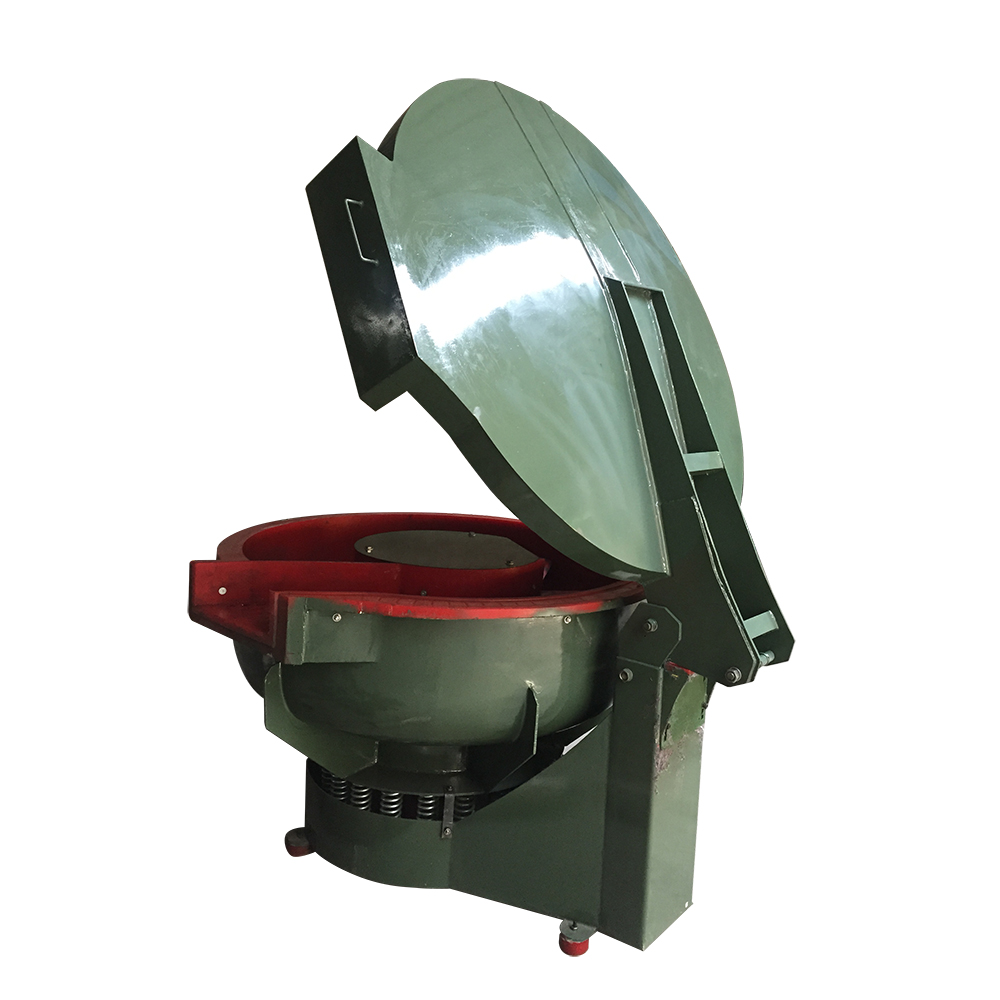

Surface treament vibratory finishing machinery with cover no noise
Vibration finishing machine Vibratory tumble finishing systems produce a cutting action by shaking the processing vessel (the finishing tub) at a high speed, causing the tumbling media and parts to scrub against each other. This scrubbing action precisely abrades the parts to remove burrs. A shaft with rotating eccentric weights mounted on the tub produces the shaking action. Vibratory deburring machines and finishing systems produce a cutting action that is very thorough. They remove material from pockets and recesses and inside bores, which cannot be done in a barrel tumbler, so they can be used for very delicate or intricate parts. With high speeds and a short stroke, they can also run large bulky parts without damage. Large wing spans and landing struts are routinely run in these systems. Vibratory finishing systems also lend themselves to be automated easily. They can be fully automated for a flow-through operation or used as a basic batch operation. The action is that of a small orbit at a high speed and thus is very powerful, yet causes little stress on the parts
Model
Capacity (L)
Lining thickness (mm)
Empty weight(kg)
Motor (kW)
Process bowl width(mm)
Size(mm)
L×W×H
HST100B
150
20
280
1.5/2.2
210
1170×1100×950
HST200B
200
20
460
3.0
250
1310×1150×1050
HST300B
300
22
600
3.7/5.0
260
1480×1330×1050
HST600B
600
26
1500
5.5/7.5
390
2000×1800×1350

Parts after be polishing

parts after be polishing
