HOLDWIN Sandblaster Tube Connector Yellow Nylon Quick Connector Hose Coupling Blasting Hose

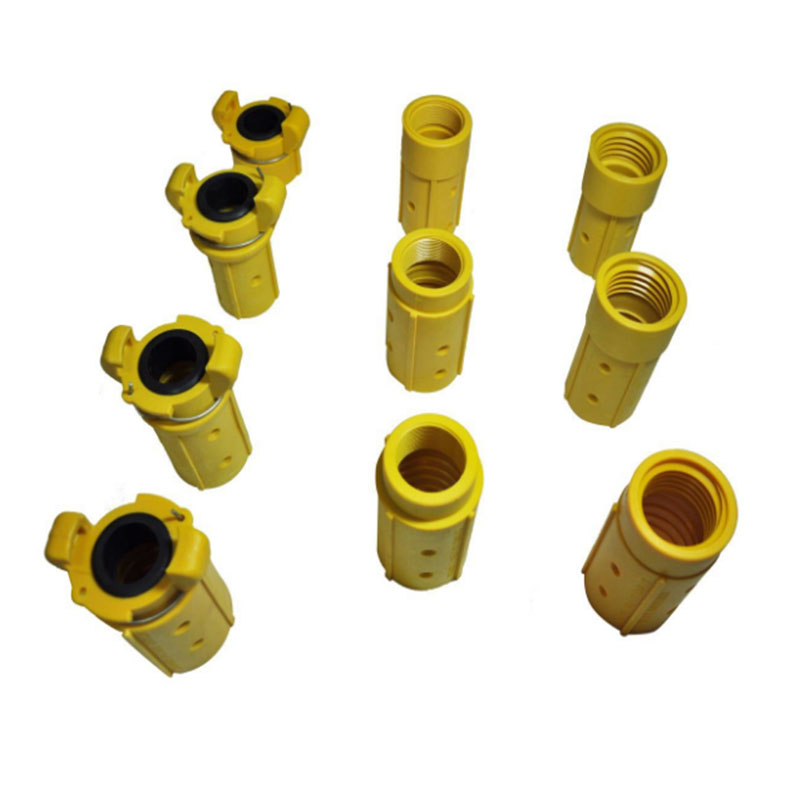

Sandblasting couplings are designed to connect hoses with sandblasting nozzles. The sandblasting couplings comprise claw couplings with claw (lug) distance or 58 mm and couplings – nozzle holders with NPT female thread or 50 mm coarse UNC thread. To assemble, the hose must be inserted inside the ferrule of the coupling and secured by screwing it down to the ferrule. The claw couplings are equipped with NBR rubber seals. The claw couplings are made of nylon (polyamide). Nozzle holders are made of nylon. The claw couplings must be secured with a pin after they are coupled. Working pressure 12 bar.

Products Details

HOLDWIN quick Nylon couplings for sandblast hose sandblast nozzle holder for sandblasting machine

There are 4 different size as following :

  When the blast tube is not long enough, we can connect the two tubes with our quick coupling. H7753c982a748471586321282cda97783g

Operation method: 1. Two tubes of the same length: Take out two joints of the same size, align the bayonet, press in and rotate to catch, then connect the sandblasting tube at both ends. 2. Two tubes of different lengths: Take out two joints of corresponding size, align the bayonet, press it to rotate, and then connect the sandblasting tube at both ends. 3. Sandblasting tank joint: Connect our short joint directly to the bottom of the sandblasting machine. Benefits:Simple operation, quick connection with sandblasting tube, improved work efficiency, less unnecessary trouble, better fixability. Occasion:Suitable for shipbuilding, large workpiece degreasing, steel structure, large castings, large molds, mechanical casings, containers, valves, mining equipment, etc.

H82dffbdc25a6408bab9abb7d9c13f641h
