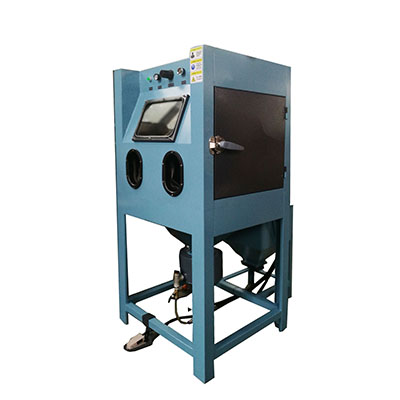

High Pressure Sand Blast Cabinet for Blalsting Mold ,Engin parts

Characteristics

1. Novel design, scientific and reasonable structure, convenient operation and superior processing performance.

2. Adopting a new type of exhaust device to reduce the damage between the exhaust electromagnetic gates.

3, automatic return sand, cyclone separator can be separated from dust, reduce abrasive consumption.

4. Use Sand: alumina sand (corundum sand) , green silicon carbide, black silicon carbide, glass beads, ceramic beads, steel beads, steel sand, stainless steel beads, aluminum beads

Scope of application:

It is suitable for large, medium and small workpieces and fast sand blasting machine with high hardness. Such as: degreasing casting parts, heat treatment parts, engine parts, valves, high-speed steel forgings, shoe mold and so on

Products Details

MODEL :HST-9080P Dimension size:900*1350(including dust box)*1900(mm) Working chamber size: 900*800*800(L*W*H mm) Dust box size: 430*430*1600(L*W*H mm) Dusting fan power: 0.55kw Dust removal method: bag pulse dust Lighting: LED 18W lamp 1 pcs Spray gun: high-pressure spray gun-1pcs Nozzle: boron carbide nozzle-1pcs Shell: 2.0mm cold-rolled steel plate welded Observation window: 1230* 420(mm) Pressure tank: diameter 350mm *high 450mm Pressure gauge: 2 pieces Regulator: 1 pcs 1 pcs Dust valve: Working door size: 630mm * 630mm Air pressure requirements: 5 ~ 8bar (kg / cm2) must be greater than 2 cubic meters of air compressor supporting High Pressure blasting machine working principle: The high pressure sandblasting machine use abrasive as the working medium with compressed air as the driving forces ,abrasive and comressed air in the pressure tank pressured , and after the acceleration of the the sand valve the abasive ejector to sandblasting gun to inject into the surface of the workpiece to achieve the desired purpose of blasting.
