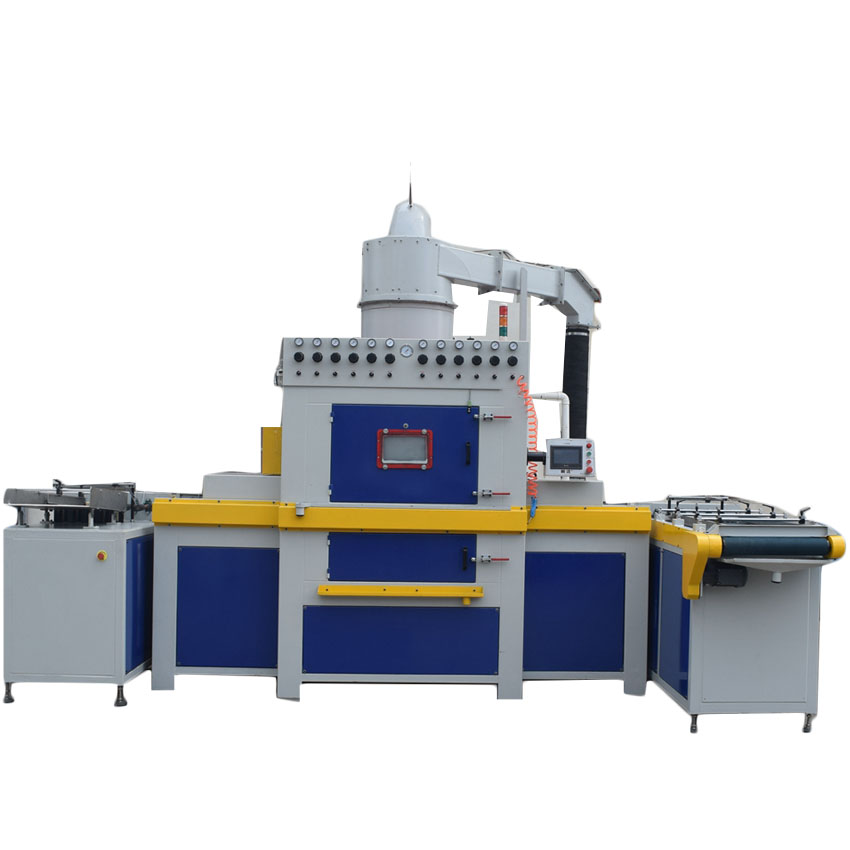

Conveyor belt automatic Sand blasting Equipment Pan plate sandblasting machine

Gun number: 8 pcs Conveyor width:1- 2m (Could be customiz) Operation type: Automatic This kind of transmission automatic sandblasting machine suitable for limestone,marble,granite,sand stone etc Automatic transmission sandblasting machine For mass cleaning of stone.marble,granite With automatic conveyer belt Blasting Gun: This series of machines is equipped with 2-50 sets of spray guns. Each spray gun has separate control It can reduce the sand material attached to the workpiece after processing. It can be designed according to the size of the customer's workpiece and the shape and output. It can also be equipped with wet dust collecting equipment according to the customer's workpiece requirements. Spray gun and gun rack, can be placed according to the size of the workpiece, and can be rotated 360 degrees, so that various workpieces can be sandblasted

Products Details

Converyor beltsand blasting equipment 1) Application
Conveyor Automatic Sandblasting Equipment

Suitable for flat panel, discs, cages, profiles and other special parts of the sandblasting processing,

such as: flat stainless steel sheet, and steel plate, glass plate, stone, non-stick pan, baking pan, toaster,

Function DVD panel, notebook, computer motherboard, iron floor, decorative pieces, signs badges, communications equipment, aluminum sheet, profiles and other special parts, etc.

Conveyor Belt Automatic Sand Blasting Machine  PLC with Display Touch Screen
Model No
SJ-500-6A
SJ-2804-8A
SJ-6010-10A
SJ-1280-12A
SJ-3515-16A
Working Space (L*W*H) mm
1000*1000*700mm
900*800*1200
2750*600*650
3000*1200*1200
3500*1500*650
Through size (W*H) mm
500 X 300
400 X 300
600 X 300
800 X 350
1500 X 350
Overall Size(mm
2000*1000*1100
3400*900*2680
3200*1000*3500
3500*1300*2800
4200*1900*3280
Fan mortor of dust collector
5.5KW 380V 50HZ
4KW 380V 50HZ
3KW 380V 50HZ
7.5KW 380V 50HZ
7.5KW 380V 50HZ
Load of Conveyor
30KGS
90KGS
50KGS
50KGS
50KGS
Total Power
7.75KW
7.5KW
5.25KW
9 KW
9.15KW
Total weight
600kgs
1500kgs
1550kgs
2000kgs
1500kgs
Drive of conveyor
0.2KW Speed adjustable
0.75KW Speed adjustable
0.75KW Speed adjustable
0.75KW Speed adjustable
0.75KW Speed adjustable
Gun Clamp
Automatic swing, speed adjustable Power 200W
Automatic swing, speed adjustable Power 400W
Automatic swing, speed adjustable Power 750W
Automatic swing, speed adjustable
Automatic swing, speed adjustable Power 400W
Blast Gun
6pcs ,Aluminum alloy with boron carbide nozzle,each gun could control Individually
8pcs ,Aluminum alloy with boron carbide nozzle,each gun could control Individually
10pcs ,Aluminum alloy with boron carbide nozzle,each gun could control Individually
12pcs ,Aluminum alloy with boron carbide nozzle,each gun could control Individually
16pcs ,Aluminum alloy with boron carbide nozzle,each gun could control Individuall
Abravise container
1pcs(suitable for 30-150 mesh abrasive)
3pcs(suitable for 30-150 mesh abrasive
3pcs(suitable for 30-150 mesh abrasive)
3pcs(suitable for 30-150 mesh abrasive
3pcs(suitable for 30-150 mesh abrasive)
