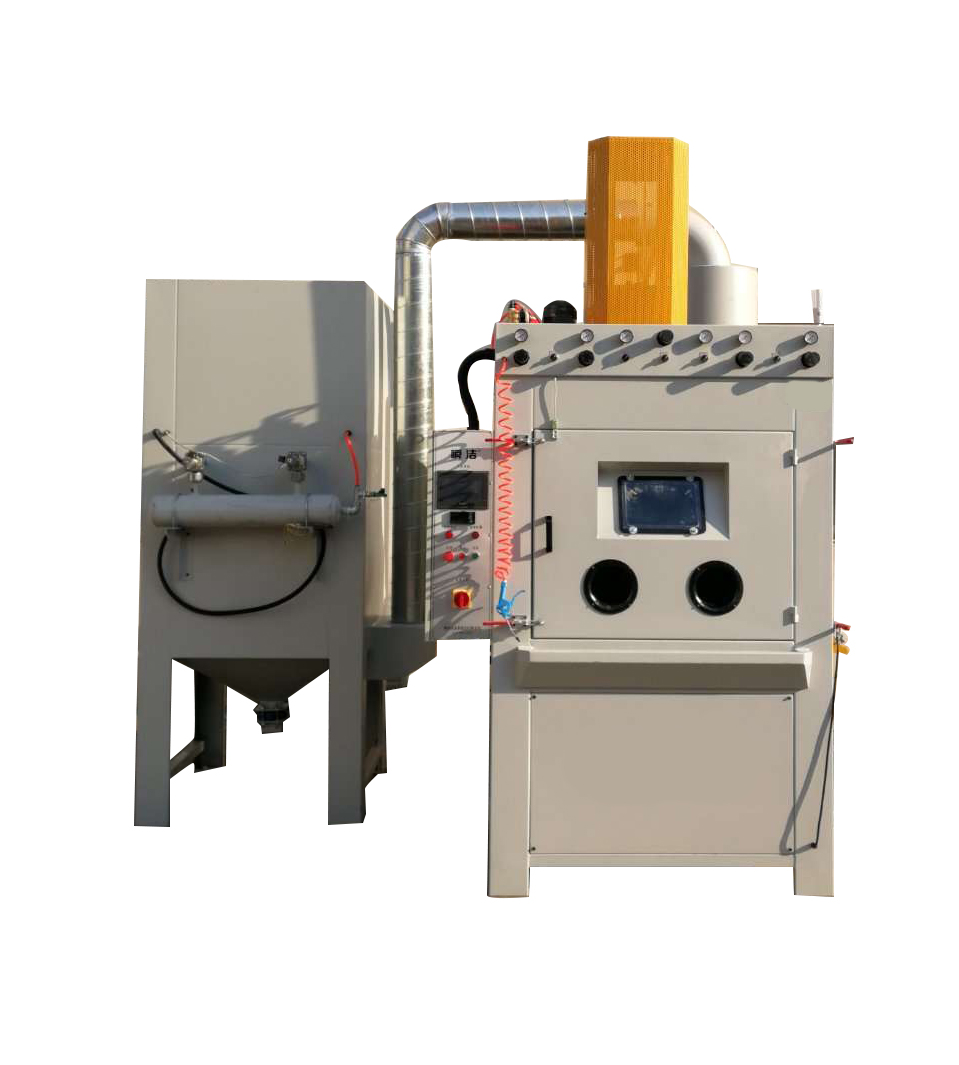

Automatic sandblast cabinet for small parts

  • the sand materials is blast by high speed rotary impeller on the plastic products to remove the burr, flake, and convex in the hole of products
  • the blasting strength is controlled by the frequency changer on the control panel.
  • this machine is equipped with a shock screen and delicate circulatory system, the sand materials can be recycled.
  • the fine burr and sand materials can be collected into dust collector, the bigger ones can be filtered by the screen.
  • It is equipped with anti-static motor and nozzle, reducing burr and powder adhesion and prolong the material’s life.
  • the blasting room is formed with band conveyor, and is covered the rubber.
  • it can be customized according to product’s need.
  • the material’s using depend on the products

Products Details

Automatic sandblast cabinet for small parts Technical as following : Machine outside size: 1450 x 800 x 1700mm Cabinet inside size: 800 x 900 x 800mm Dust blower: 220V 50HZ 0.55KW Separator size: 750 x 300mm Lighting: 36W fluorescent lamp 1 With PLC control Work: automatic work (can be set time) Number of guns: 2 (aluminum alloy with boron carbide nozzle) Outjacket material: 2.0mm cold rolled steel welded Eye: 1 frame window Door: front door Applied : 30 mesh -250 mesh abrasive Because the air pressure is greater than 7bar (kg/cm2) (air compressor is the air compressor equipment) in 2 cubic meters Roller: 1 (automatic rolling work), drum diameter 500MM, automatic roll out of the basket. Maximum load: 18 kg Total power: 0.75KW Total weight: 0.5 tons More pictures
